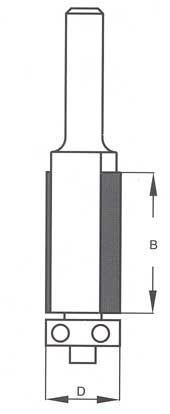

| F | Flush Trim Bits With Ball Bearing Guide |
|
|
6mm or 1/4" shank |
|||||||
| Tool No. | D | B | No. of Flutes | Ball Bearing | |||
| mm | inch | mm | inch | ||||
| F220634 | 6.3 | 1/4 | 13 | 1/2 | 2 | B063032 | |
| F230634 | 6.3 | 1/4 | 19 | 3/4 | 2 | B063032 | |
| F240634 | 6.3 | 1/4 | 25 | 1 | 2 | B063032 | |
| • | MF22084 | 8.0 | 5/16 | 13 | 1/2 | 2 | B080040 |
| ! | F220954 | 9.5 | 3/8 | 13 | 1/2 | 2 | B095048 |
| ! | F240954 | 9.5 | 3/8 | 25 | 1 | 2 | B095048 |
| ! | F221274 | 12.7 | 1/2 | 13 | 1/2 | 2 | B127048 |
| ! | F241274 | 12.7 | 1/2 | 25 | 1 | 2 | б127048 |
| F321274 | 12.7 | 1/2 | 13 | 1/2 | 3 | B127048 | |
| F341274 | 12.7 | 1/2 | 25 | 1 | 3 | B127048 | |
| F322204 | 22.0 | 7/8 | 13 | 1/2 | 3 | б220070 | |
12mm or 1/2" shank |
|||||||
| F221278 | 12.7 | 1/2 | 13 | 1/2 | 2 | B127048 | |
| F241278 | 12.7 | 1/2 | 25 | 1 | 2 | B127048 | |
| F261278 | 12.7 | 1/2 | 38 | 1-1/2 | 2 | B127048 | |
| F281278 | 12.7 | 1/2 | 51 | 2 | 2 | B127048 | |
| F341278 | 12.7 | 1/2 | 25 | 1 | 3 | B127048 | |
| F361278 | 12.7 | 1/2 | 38 | 1-1/2 | 3 | B127048 | |
| F441908 | 19.0 | 3/4 | 25 | 1 | 4 | B190063 | |
| F461908 | 19.0 | 3/4 | 38 | 1-1/2 | 4 | B190063 | |
| F481908 | 19.0 | 3/4 | 51 | 2 | 4 | B190063 | |
With double ball bearing for added stability
 |
 |
12mm or 1/2" shank |
|||||||
| Tool No. | mm | D inch | mm | B inch | No. of Flutes | Ball Bearing | |
| F261288 | 12.7 | 1/2 | 38 | 1-1/2 | 2 | B127048 | |
| F361288 | 12.7 | 1/2 | 38 | 1-1/2 | 3 | B127048 | |
| F281288 | 12.7 | 1/2 | 51 | 2 | 2 | B127048 | |
Laminate Trimmers
Negative shear - eliminates chipping
 |
 |
6mm or 1/4" shank |
|||||||
| Tool No. | D | B | No. of Flutes | Ball Bearina | |||
| mm | inch | mm | inch | ||||
| F221604 | 16.0 | 5/8 | 16 | 5/8 | 2 | B160050 | |
| F221904 | 19.0 | 3/4 | 16 | 5/8 | 2 | B190063 | |
| FS41274 | 12.7 | 1/2 | 25 | 1 | 2 | B127048 | |
12mm or 1/2" shank |
|||||||
| FS41278 | 12.7 | 1/2 | 25 | 1 | 2 | B127048 | |
| FS61908 | 19.0 | 3/4 | 38 | 1-1/2 | 2 | B190063 | |
| FS81908 | 19.0 | 3/4 | 51 | 2 | 2 | B190063 | |
Bevel Trim Bit
Negative shear Smooth guiding despite excess of glue
 |
 |
 |
6mm or 1/4"shank |
||||||
| Tool No. | a | B | No. of Flutes | Ball Bearing | ||
| degrees | mm | inch | ||||
| SL20804 | 8 | 12 | 1/2 | 2 | B127048 | |
! Available with 8mm shank
• Miniature Line Bit
