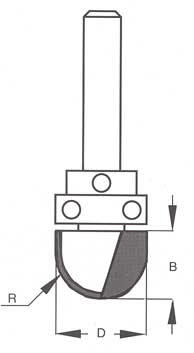

| DB | Core Box Template Bits With Ball Bearing guide |
|
|
6mm or 1/4" shank |
||||||
| Tool No. | D < 2R | B | Ball Bearing | |||
| mm | inch | mm | inch | |||
| DB10004 | 9.5 | 3/8 | 6 | 1/4 | B127063 | |
| DB12004 | 12.7 | 1/2 | 9 | 3/8 | б127063 | |
| DB16004 | 16.0 | 5/8 | 9,5 | 3/8 | б 159063 | |
| OB19004 | 19.0 | 3/4 | 11 | 7/16 | B190063 | |
12mm or 1/2" shank |
||||||
| DB19008 | 19.0 | 3/4 | 11 | 7/16 | B190127 | |
| DB25008 | 25.4 | 1 | 16 | 5/8 | B254127 | |
