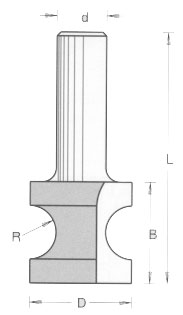

Code No. |
D |
R |
B |
L |
d |
|
1240 01 4 |
13.5 |
2.0 |
12.7 |
41.3 |
# 6.35 |
|
|
(17/32) | (5/64) |
(1/2) |
(1 5/8) |
(1/4) |
|
1240 04 4 |
15.1 |
2.8 |
12.7 |
41.3 |
# 6.35 |
|
(19/32) |
(7/64) |
(1/2) |
(1 5/8) |
(1/4) |
|
|
1240 07 4 |
16.7 |
3.6 |
19.1 |
47.6 |
# 6.35 |
|
(21/32) |
(9/6) |
(3/4) |
(1 7/8) |
(1/4) |
|
|
1240 10 4 |
22.2 |
5.2 |
19.1 |
47.6 |
# 6.35 |
|
(7/8) |
(13/64) |
(3/4) |
(1 7/8) |
(1/4) |
|
|
1240 13 4 |
26.2 |
6.8 |
25.4 |
54.0 |
# 6.35 |
|
(1 1/32) |
(17/64) |
(1") |
(2 1/8) |
(1/4) |
|
|
1240 01 8 |
13.5 |
2.0 |
12.7 |
55.0 |
12.7 |
|
(17/32) |
(5/64) |
(1/2) |
(2 3/16) |
(1/2) |
|
|
1240 04 8 |
15.1 |
2.8 |
12.7 |
51.0 |
12.7 |
|
(19/32) |
(7/64) |
(1/2) |
(2") |
(1/2) |
|
|
1240 07 8 |
16.7 |
3.6 |
19.1 |
57.0 |
12.7 |
|
(21/32) |
(9/64) |
(3/4) |
(2 1/4) |
(1/2) |
|
|
1240 10 8 |
22,2 |
5.2 |
19.1 |
57.0 |
12.7 |
|
(7/8) |
(13/64) |
(3/4) |
(2 1/4) |
(1/2) |
|
|
1240 13 8 |
26.1 |
6.8 |
25.4 |
63.5 |
12.7 |
|
(1 1/32) |
(17/64) |
(1") |
(2 1/2) |
(1/2) |
|
|
1240 15 8 |
28.0 |
7.9 |
25.4 |
63.5 |
12.7 |
|
(1 1/64) |
(5/16) |
(1") |
(2 1/2) |
(1/2) |
|
|
1240 17 8 |
33.3 |
9.5 |
33.7 |
73.0 |
12.7 |
|
(1 5/16) |
(3/8) |
(1 21/64) |
(2 1/8) |
(1/2) |
|
|
1240 20 8 |
42.0 |
12.7 |
39.7 |
78.0 |
12.7 |
|
(1 21/32) |
(1/2) |
(1 9/16) |
(3 1/16) |
(1/2) |
|
|
1240 238 |
50.8 |
15.9 |
50.0 |
88.0 |
12.7 |
|
(2") |
(5/8) |
(1 31/32) |
(3 15/32; |
(1/2) |
|
|
1248 26 8 3T ! |
3T 60.3 |
19.1 |
50.8 |
88.0 |
12.7 |
|
(2 3/8) |
(3/4) |
(2") |
(3 15/32) |
(1/2) |
# All these marked tools are available also with 8mm shank.
! 18OOO MAX RPM
